Synchronization¶

Race Condition¶

Several processes (or threads) access and manipulate the same data concurrently and the outcome of the execution depends on the particular order in which the access takes place, is called a race-condition

如多个进程并行地写数据，结果取决于写的先后顺序

单个call也可能出现race condition

Critical Section¶

General structure of process

每个process都有critical section segment

同时间内critical section只能有一个进程。每个进程必须在entry section获取critical section的访问权限，之后permission在exit section释放

Critical Section Handling in OS

Single-core system: preventing interrupts
Multiple-processor: preventing interrupts are not feasible (depending on if kernel is preemptive or non-preemptive)
Preemptive – allows preemption of process when running in kernel mode
Non-preemptive – runs until exits kernel mode, blocks, or voluntarily yields CPU

Solution: Three Requirements

Mutual Exclusion(互斥访问)、Progress(空闲让进)、Bounded waiting(有限等待)

Mutual Exclusion（互斥访问）
- 在同一时刻，最多只有一个线程可以执行临界区
Progress（空闲让进）
- 当没有线程在执行临界区代码时，必须在申请进入临界区的线程中选择一个线程，允许其执行临界区代码，保证程序执行的进展
Bounded waiting（有限等待）
- 当一个进程申请进入临界区后，必须在有限的时间内获得许可并进入临界区，不能无限等待
- prevent starvation

Peterson's Solution

Peterson’s solution solves two-processes/threads synchronization (Only works for two processes case)

It assumes that LOAD and STORE are atomic
atomic: execution cannot be interrupted
Two processes share two variables
boolean flag[2]: whether a process is ready to enter the critical section
int turn: whose turn it is to enter the critical section

验证三个条件

Mutual exclusion
P0 enters CS:
- Either flag[1]=false or turn=0
- Now prove P1 will not be able to enter CS
Case 1: flag[1]=false -> P1 is out CS
Case 2: flag[1]=true, turn=1 -> P0 is looping, contradicts with P0 is in CS
Case 3: flag[1]=true, turn=0 -> P1 is looping
Process requirement

Bounded waiting: Whether P0 enters CS depends on P1; Whether P1 enters CS depends on P0; P0 will enter CS after one limited entry P1

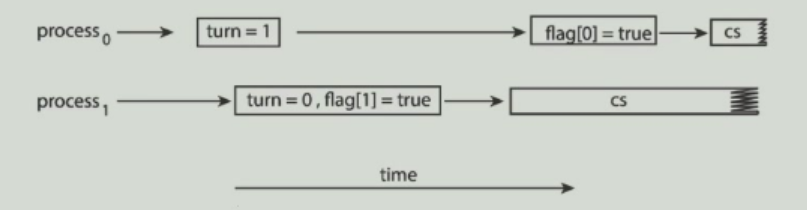

Peterson’s Solution is not guaranteed to work on modern architectures.

Only works for two processes case
It assumes that LOAD and STORE are atomic
Instruction reorder

指令会乱序执行。

100 is the expected output. 但是线程 2 的代码可能被乱序，两条指令交换顺序，这样输出就可能变成 0。

Hardware Support for Synchronization¶

Many systems provide hardware support for critical section code

Uniprocessors: disable interrupts
Solutions:
Memory barriers
Hardware instructions
- test-and-set: either test memory word and set value
- compare-and-swap: compare and swap contents of two memory words
Atomic variables

Memory Barriers

Memory model are the memory guarantees a computer architecture makes to application programs, may be either:

Strongly ordered – where a memory modification of one processor is immediately visible to all other processors. 一个内存的修改要立刻被所有的 processors 看到。
Weakly ordered – where a memory modification of one processor may not be immediately visible to all other processors.

A memory barrier is an instruction that forces any change in memory to be propagated (made visible) to all other processors.

添加memory barrier使之前代码不会出错

Hardware Instructions

Special hardware instructions that allow us to either test-and-modify the content of a word, or two swap the contents of two words atomically (uninterruptable)

test-and-set instruction
defined as below, but atomically

bool test_set (bool *target)
{
    bool rv = *target;
    *target = TRUE;
    return rv:
}

example: lock为true时会进入死循环，false时进入CS。有可能不满足bounded-waiting

bool lock = FALSE
do {
    while (test_set(&lock)); // busy wait
    critical section
    lock = FALSE;
    remainder section
} while (TRUE);

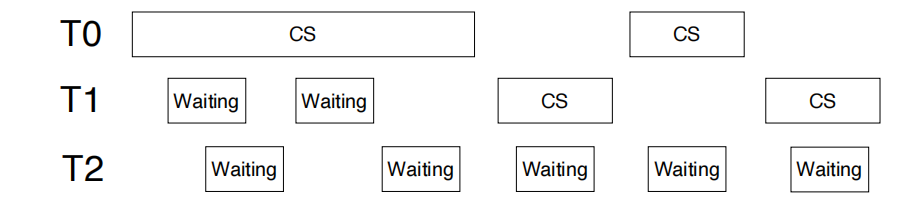

达不到bounded waiting的要求

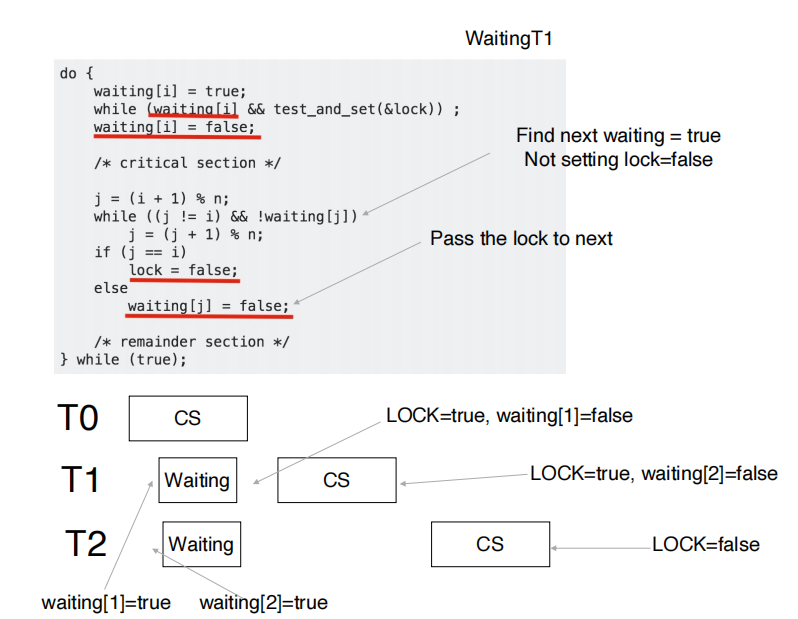

改进

Compare-and-Swap Instruction 实现了
Definition: Executed atomically, the swap takes place only under this condition.

int compare_and_swap(int *value, int expected, int new_value)
{
 int temp = *value;
 if (*value == expected)
  *value = new_value;
 return temp;
}

Shared integer lock initialized to 0

while (true)
{
 while (compare_and_swap(&lock, 0, 1) != 0)
   ; /* do nothing */
 /* critical section */
 lock = 0;
 /* remainder section */
}

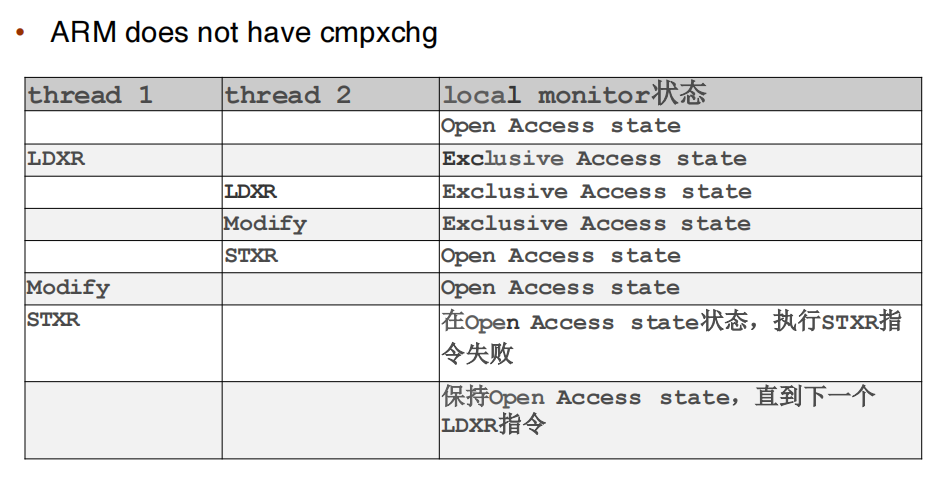

in practice: ARM64

Atomic Variables

provide atomic (uninterruptible) updates on basic data types such as integers and booleans

increment(&sequence); for example

void increment(atomic_int *v) {
    int temp;
    do {
      temp = *v;
  } while (temp != (compare_and_swap(v,temp,temp+1));
}

Mutex Locks¶

Calls to acquire() and release() must be atomic
this solution requires busy waiting, this lock therefore called a spinlock

bool locked = false;
acquire() {
    while (compare_and_swap(&locked, false, true))
        ; //busy waiting
}
release() {
    locked = false;
}

问题：如果一个进程有时间片，但是拿不到锁，一直 spin，会浪费 CPU 时间。

reduce busy waiting: yield -> moving from running to sleeping

void init() {
    flag = 0;
}
void lock() {
    while (test_set(&flag, 1) == 1)
        yield(); // give up the CPU
}
void unlock() {
    flag = 0;
}

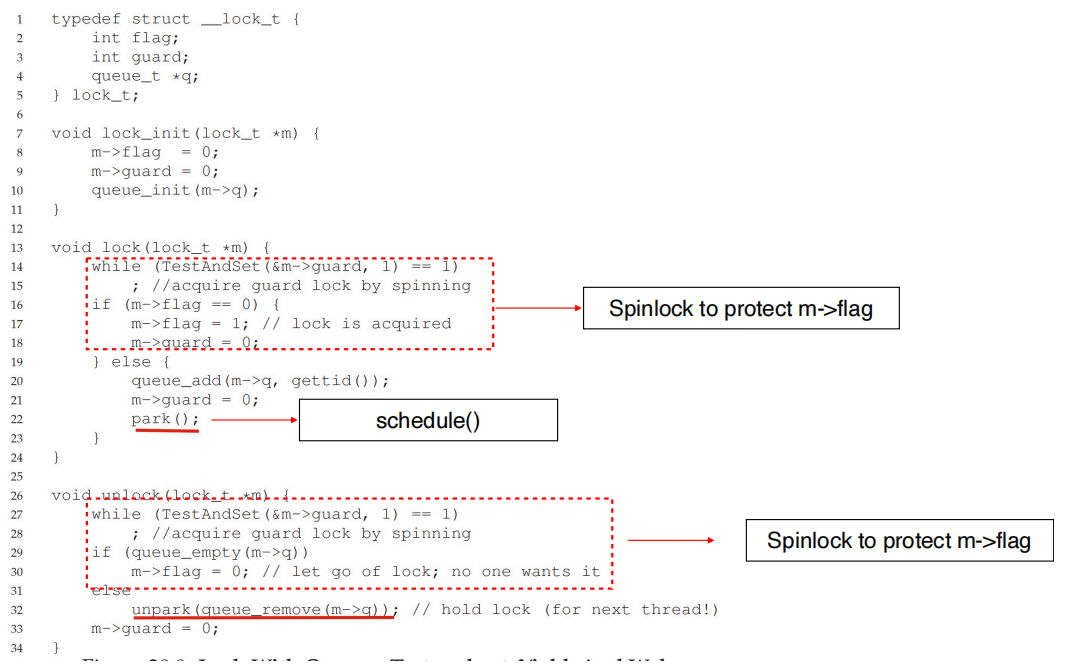

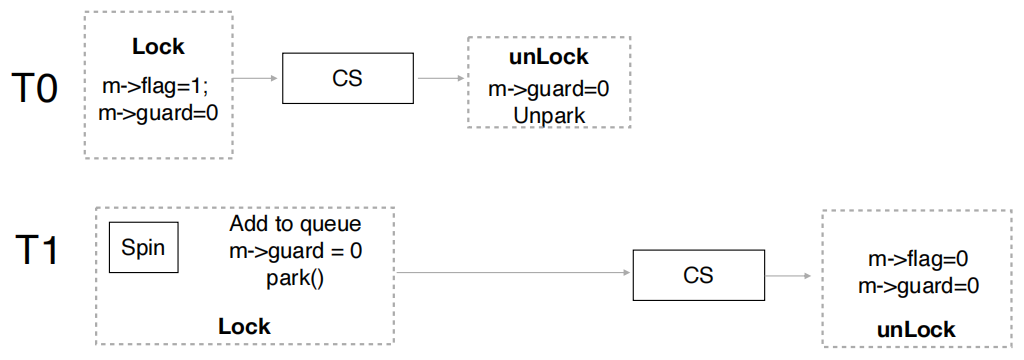

add a queue, when the lock is locked, change process’s state to SLEEP, add to the queue, and call schedule()

Semaphore¶

two types - Counting semaphore – integer value can range over an unrestricted domain - Binary semaphore – integer value can range only between 0 and 1
- 和mutex lock一样
wait() and signal() (Originally called P() and V() Dutch)

wait() 想拿到这个 semaphore，如果拿不到，就一直等待。

wait(S) {
    while (S <= 0) ; // busy wait
    S--;
}

signal() 释放 semaphore。
```
signal(S) {
    S++;
}
```

data structure of waiting queue

typedef struct {
    int value;
    struct list_head * waiting_queue;
} semaphore;

two operations - block:把当前的进程 sleep，放到 waiting queue 里面。 - wakeup:从 waiting queue 里面拿出一个进程，放到 ready queue 里面。
implementation

wait(semaphore *S) {
    S->value--;
    if (S->value < 0) {
        add this process to S->list;
        block();
    }
}

signal(semaphore *S) {
    S->value++;
    if (S->value <= 0) {
        remove a proc.P from S->list;
        wakeup(P);
    }
}

需要进行原子保护，否则多进程同时signal就会出问题，通过spinlock实现

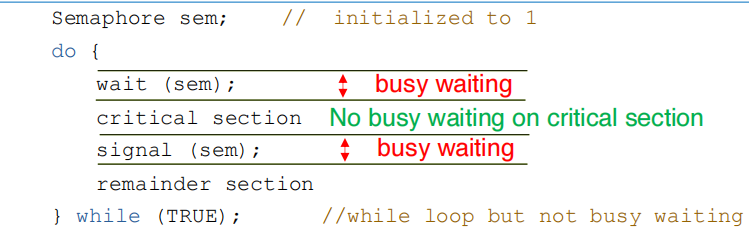

关于busy waiting: binary的有，counting的没有。cs里无busy waiting（没有拿到 semaphore 就会 sleep，还没有走到 critical section），只有 wait 和 signal 里需要 busy waiting

Summary: Comparison between mutex and semaphore

Mutex or spinlock

Pros: no blocking

Cons: Waste CPU on looping

Good for short critical section

Semaphore

Pros: no looping

Cons: context switch is time-consuming

Good for long critical section

in practice - 21与22行互换会导致持锁sleep，极大降低效率 - spinlock保证操作原子性

Deadlock and Starvation¶

deadlock: two or more processes are waiting indefinitely for an event that can be caused by only one of the waiting processes.
starvation: indefinite blocking, a process may never be removed from the semaphore’s waiting queue
dealock一定导致starvation

Priority Inversion¶

高优先级等低优先级（锁先被低优先级拿到），但是低优先级的进程拿不到 CPU，就无法释放锁，高优先级一直等待锁
solution: priority inheritance,
temporary assign the highest priority of waiting process (\(P_H\)) to the process holding the lock (\(P_L\))

如果低优先级的进程拿到了锁，而且这个锁上有高优先级的进程在等，就提高低优先级的进程的优先级，继承锁的优先级（取决于在这个锁上等待的进程的最高的优先级）。

Linux Synchronization¶

2.6 以前的版本的 kernel 中通过禁用中断来实现一些短的 critical section；2.6 及之后的版本的 kernel 是抢占式的。

Linux 提供：

Atomic integers
Spinlocks
Semaphores,在 linux/include/linux/semaphore.h 中，down() 是 lock（如果要进入 sleep，它会先释放锁再睡眠，唤醒之后会立刻重新获得锁），up() 是 unlock。
Reader-writer locks

POSIX Synchronization¶

POSIX API provides

mutex locks
semaphores
condition variable

Mutex Locks¶

Creating and initializing the lock

#include <pthread.h>
pthread_mutex_t mutex;
/* create and initialize the mutex lock */
pthread_mutex_init(&mutex, NULL);

Acquiring and releasing the lock

/* acquire the mutex lock */
pthread_mutex_lock(&mutex);
/* critical section */
/* release the mutex lock */
pthread_mutex_unlock(&mutex);

Semaphores¶

Named semaphores can be used by unrelated processes, unnamed cannot. sem_open(), sem_init(), sem_wait(), sem_post()

Unamed Semaphores¶

Creating an initializing the semaphore:

#include <semaphore.h>
sem_t sem;
/* Create the semaphore and initialize it to 1 */
sem_init(&sem, 0, 1);

Acquiring and releasing the semaphore:

/* acquire the semaphore */
sem_wait(&sem);
/* critical section */
/* release the semaphore */
sem_post(&sem);

Named Semaphores¶

Creating an initializing the semaphore:

#include <semaphore.h>
sem_t *sem;
/* Create the semaphore and initialize it to 1 */
sem = sem_open("SEM", O_CREAT, 0666, 1);

Another process can access the semaphore by referring to its name SEM.
Acquiring and releasing the semaphore:

/* acquire the semaphore */
sem_wait(sem);
/* critical section */
/* release the semaphore */
sem_post(sem);

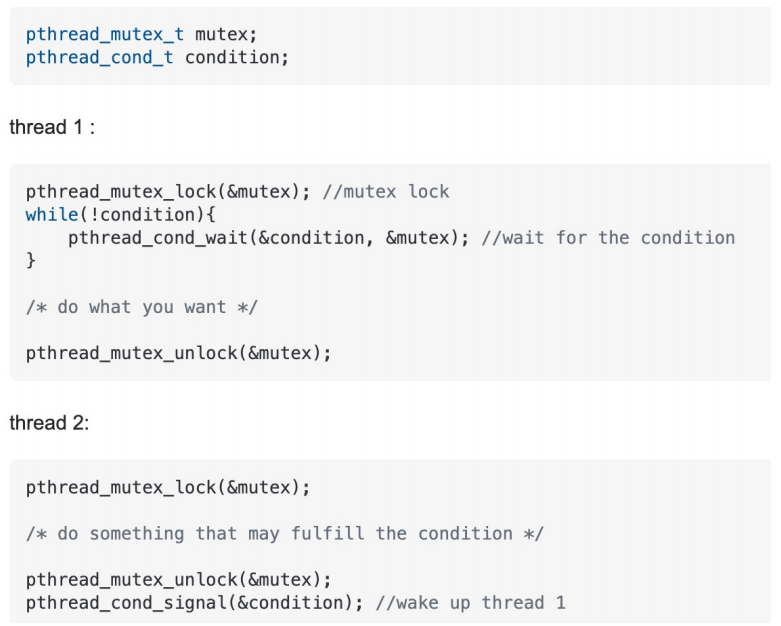

Condition Variable¶

When should we use condition variables?

Operations supported by a condition variable are:

wait(condition, lock): release lock, put thread to sleep until condition is signaled; when thread wakes up again, re-acquire lock before returning.

等待一个条件（先放锁然后睡眠，等待被唤醒，被唤醒之后重新获得锁）。

signal(condition, lock): if any threads are waiting on condition, wake up one of them. Caller must hold lock, which must be the same as the lock used in the wait call.

唤醒一个等待线程。

broadcast(condition, lock): same as signal, except wake up all waiting threads.

唤醒所有的等待线程。

pthread_mutex_t mutex;
pthread_cond_t cond_var;
pthread_mutex_init(&mutex, NULL);
pthread_cond_init(&cond_var, NULL);
// Thread waiting for the condition a == b to become true:
pthread_mutex_lock(&mutex);
while(a != b)                               // 一般要重复尝试，所以用 while 而不是 if
    pthread_cond_wait(&cond_var, &mutex);   // release lock when wait, acquire lock when being signaled
pthread_mutex_unlock(&mutex);
// Thread signaling another thread waiting on the condition variable:
pthread_mutex_lock(&mutex);
a = b;
pthread_cond_signal(&cond_var);
pthread_mutex_unlock(&mutex);

usage scenarios

Condition variable can wake up all threads, semaphore can only wake up one by one.
Sometimes we only care if the queue is empty or not, while don’t care the queue length.

有的时候我们不关心等待队列的长度，那么 semaphore 的 val 就没有用处了。

Mutex is used to guarantee that operations are atomic.

Examples¶

Bounded-buffer problem¶

就考到这难度

定义

Two processes, the producer and the consumer share n buffers

the producer generates data, puts it into the buffer.
the producer won’t try to add data into the buffer if it is full.

当 buffer 满的时候，生产者不能再放数据，应该 sleep。
the consumer consumes data by removing it from the buffer.
the consumer won’t try to remove data from an empty buffer.

当 buffer 空的时候，消费者不能再取数据，应该 sleep。

Solution: n个buffer，每个放一个item。semaphore mutex 初始置为1，互斥保护。还需要两个 semaphore，分别是full-slots和empty-slots，分别初始为0和N

The producer process

do {
    //produce an item
    ...
    wait(empty-slots);      // 把 empty-slots 减一（初始为 N）
    wait(mutex);
    //add the item to the buffer
    ...
    signal(mutex);
    signal(full-slots);
} while (TRUE)

这里wait()的顺序不能调换：如果先wait(mutex)，那么wait(empty-slots)之后，如果 buffer 空了，那么这个时候就会带着 mutex 休眠，这样另一个进程也拿不到这个锁了。

同时也不能先signal(full-slots)，否则实际buffer还没添加内容，就加1了

The consumer process

do {
    wait(full-slots);           // 把 full-slots 减一（初始为 0）
    wait(mutex);
    //remove an item from the buffer
    ...
    signal(mutex);
    signal(empty-slots);
} while (TRUE)

Readers-writers problem¶

定义

A data set is shared among a number of concurrent processes

readers: only read the data set; they do not perform any updates
writers: can both read and write

多个 reader 可以共享，即同时读；但只能有一个 write 访问数据（写和读也不共享）。

Solution

semaphore mutex initialized to 1
semaphore write initialized to 1
integer readcount initialized to 0

Code(Reader first)

The writer process

The writer process
do {
    wait(write);
    //write the shared data
    ....
    signal(write);
} while (TRUE);

The reader process

do {
    wait(mutex);
    readcount++;
    if (readcount == 1)
        wait(write);
    signal(mutex)

    //reading data
    ...
    wait(mutex);
    readcount--;
    if (readcount == 0)
        signal(write);
    signal(mutex);
} while(TRUE);

mutex 用来保护readcount。这里如果count是1，就获得write的锁来保护这个read。假设writer拿到了锁，来了5个reader，那么第一个会sleep在write上，剩下4个reader会sleep在mutex上，因为这时候第一个reader还没signal(mutex)，在一进来就在wait(mutex)了。

Two variations of readers-writers problem
- Reader first
如果有 reader holds data，writer 永远拿不到锁，要等所有的 reader 结束。
- Writer first
如果 write ready 了，他就会尽可能早地进行写操作。如果有 reader hold data，那么需要等待 ready writer 结束后再读。

Dining-philosophers problem¶

Philosophers spend their lives thinking and eating, they sit in a round table, but don’t interact with each other.

每次只能拿一根筷子，但是要拿到两只筷子才能吃饭。例如如果每个人都先拿自己右边的筷子，再准备拿左边的筷子，就会卡死

Solution(assuming 5 philosophers): semaphore chopstick[5] initialized to 1

Philosopher i

do {
    wait(chopstick[i]);
    wait(chopstick[(i+1)%5]);
    eat
    signal(chopstick[i]);
    signal(chopstick[(i+1)%5]);
    think
} while(TRUE);

Another solution: only odd philosophers start left-hand first, and even philosophers start right-hand first. This does not deadlock.

Synchronization¶

Race Condition¶

Critical Section¶

Hardware Support for Synchronization¶

Mutex Locks¶

Semaphore¶

Deadlock and Starvation¶

Priority Inversion¶

Linux Synchronization¶

POSIX Synchronization¶

Mutex Locks¶

Semaphores¶

Unamed Semaphores¶

Named Semaphores¶

Condition Variable¶

Examples¶

Bounded-buffer problem¶

Readers-writers problem¶

Dining-philosophers problem¶

评论
