Scheduling

CPU Scheduling

• Definition: The decisions made by the OS to figure out which ready processes/threads should run and for how long.

• The policy is the scheduling strategy. 怎么选择下一个要执行的进程

• The mechanism is the dispatcher. 该机制是调度器 怎么快速切换到下一进程

CPU-I/O Burst Style

• Most processes alternate between CPU and I/O activities

• I/O-bound process: most waiting I/O, many short CPU bursts. 大部分操作都I/O-bound

• CPU-bound process: 渲染、计算...

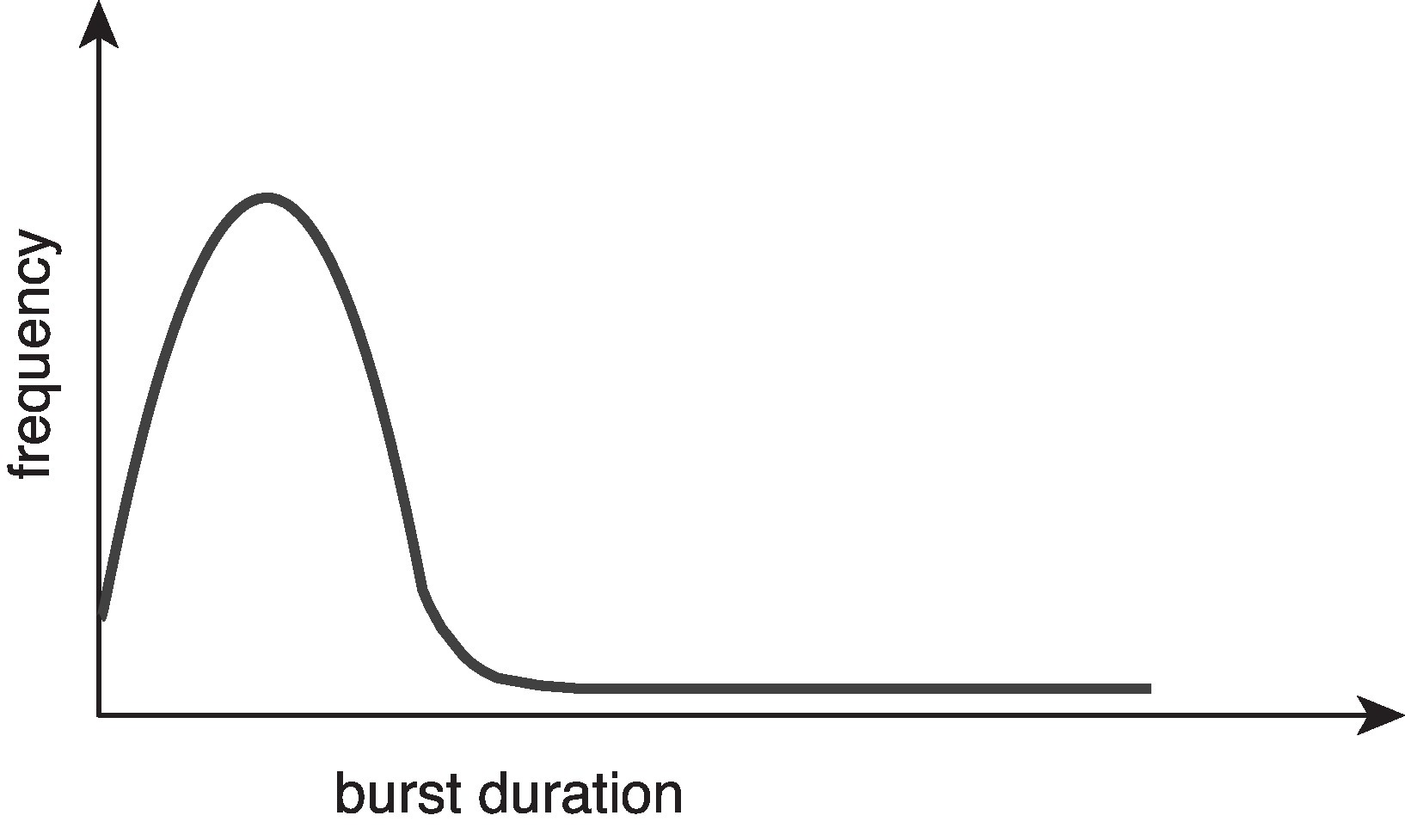

• Histogram of CPU-burst Times

The CPU Scheduler

• Whenever the CPU becomes idle, a ready process must be selected for execution

当 CPU 空闲时，从所有的 ready processes 中选一个继续跑。

• Non-preemptive scheduling: a process holds the CPU until it is willing to give it up.

非抢占式，它一直占着 CPU，直到它自己放弃。

• Preemptive scheduling: a process can be preempted even though it could have happily continued executing.

抢占式，CPU 决定每个进程能跑多久，可以强制中止正在跑的进程。 OS一般抢占式

• Scheduling Decision Points: scheduling decisions can occur

在非抢占式的情况中第二种情况不会发生，无论在哪种中第六种都不会发生

• A process goes from RUNNING to WAITING

  e.g. waiting for I/O to complete

• A process goes from RUNNING to READY

  e.g. when an interrupt occurs (such as a timer going off)

• A process goes from WAITING to READY

  e.g. an I/O operation has completed

• A process goes from RUNNING to TERMINATED

• A process goes from NEW to READY

• A process goes from READY to WAITING

Scheduling Objectives

• Maximize CPU Utilization
• Maximize Throughput
• Minimize Turnarround Time 周转时间，指进程从创建到完成的时间。
• Minimize Waiting Time
• Minimize Response Time 响应时间，指进程从创建到第一次响应被接受的时间。

Scheduling Mechanisms

Dispatcher

Dispatcher module gives control of the CPU to the process selected by the scheduler.

• switching to kernel mode

kernel_entry, 用户态的信息存在 pt_regs 中。

• switching context

上下文存在 PCB 中。

• switching to user mode

• jumping to the proper location in the user program to restart that program

Dispatch latency – time it takes for the dispatcher to stop one process and start another to run. 这是 pure overhead，因为 CPU 没有做实际的工作。

Scheduling Algorithms

• The algorithm cannot be overly complicated so that they can be fast

First-Come, First-Served Scheduling (FCFS)

• Waiting time = start time – arrival time
• Turnaround time = finish time – arrival time
• Convoy effect - short process behind long process 慢车在快车后面，所有车都在后面等着。

Shortest-Job-First(SJF) Scheduling

Use these lengths to schedule the process with the shortest time.

注意分为抢占式和非抢占式的！

有多段的执行，等待时间我们要计算这个进程在执行结束前，有多少时间没有被执行，即 25-10=15。

• 理论最优，但由于不知道执行一个进程需要多久，因此没有价值

• Predicting CPU burst durations: 据之前的时间，预测一个进程的下一次执行时间：\(\tau_{n+1}=\alpha t_n+(1-\alpha)\tau_n\)

Round-Robin Scheduling

RR Scheduling is preemptive and designed for time-sharing.

给进程一个固定时间片，用完了就跑到 ready queue 末尾排队。

Ready Queue is a FIFO. Whenever a process changes its state to READY it is placed at the end of the FIFO.

Scheduling:

• Pick the first process from the ready queue
• Set a timer to interrupt the process after 1 quantum
• Dispatch the process

• No starvation, so better response time

在 SJF 中，如果不停的有时间短的进程进来，那么长进程就可能永远无法执行，称为 starvation。

• The wait time is bounded.

• Trade-off

• Short quantum: great response/interactivity but high overhead

• Long quantum: poor response/interactivity, but low overhead

• In practice, %CPU time spent on switching is very low

• time quantum: 10ms to 100ms

• context-switching time: 10μs

Priority Scheduling

优先级高的先被调度，优先级低的后被调度。（No convention: low number can mean low or high priority）

• Priorities can be internal.

e.g. in SJF it’s the predicted burst time, the number of open files.

• Priorities can be external.

e.g. set by users to specify relative importance of jobs.

Processes with the same priority run round-robin

• starvation: 优先级低的可能永远无法执行
• solution: Priority aging: Increase the priority of a process as it ages

Multilevel Queue Scheduling

• Scheduling within queues
• 每个queue有自己的调度policy
• 如high-priority使用RR，low-priority使用FCFS
• Scheduling between queues
• 抢占式 or time-slicing among queues

Multilevel Feedback Queues

• Processes can move among the queues.
• 当process的characteristic变化时改变queue，同时是一个good way to implement priority aging

有三层队列，第一、二层是 Round-Robin。来了一个进程先放到第一个队列里准备执行，如果没执行完就放到第二个队列里，如果还没执行完就放到第三个队列里 FCFS。如果最开始在 Q0 就执行完了，很可能是 I/O bound 的进程，我们把它的优先级设的很高；否则可能是 CPU-bound 我们就降低它的优先级。

非 CPU-intensive 的进程应该尽快得到 CPU，因为它们可能是交互式进程。

可配置性很高。包括queue的数量，每个queue的调度算法，queue之间的调度算法，提升或降级某个process的方法

不同system之间最好的调度算法可能不一样

What’s a Good Scheduling Algorithm?

• Few analytical/theoretical results are available

• Another option: Simulation

• Finally: Implementation

Thread Scheduling

• process-contention scope (PCS)

每个进程分到时间片一样，然后进程内部再对线程进行调度。

• system-contention scope (SCS)

所有线程进行调度。

现在主流 CPU 都是以线程为粒度进行调度的。

Multiple-Processor Scheduling

Multi-processor may be any one of the following architectures:

• Multi-core CPUs
• Multi-threaded cores

Multithreaded Multicore System

• Symmetric multiprocessing (SMP) is where each processor is self scheduling

• All threads may be in a common ready queue (a)

• Each processor may have its own private queue of threads (b)

现在大部分是这种架构。

CPU 中计算单元很快，但是内存访问是很慢的，需要 stall。为了利用这段 stall 的时间，我们就多用一个 thread，在这个 thread stall 时执行另一个 thread。（hyperthreading）

Chip-multithreading (CMT) assigns each core multiple hardware threads. (Intel refers to this as hyperthreading.)

hyperthreading 属于硬件线程，由硬件来调度，不同于 OS 里的 thread。

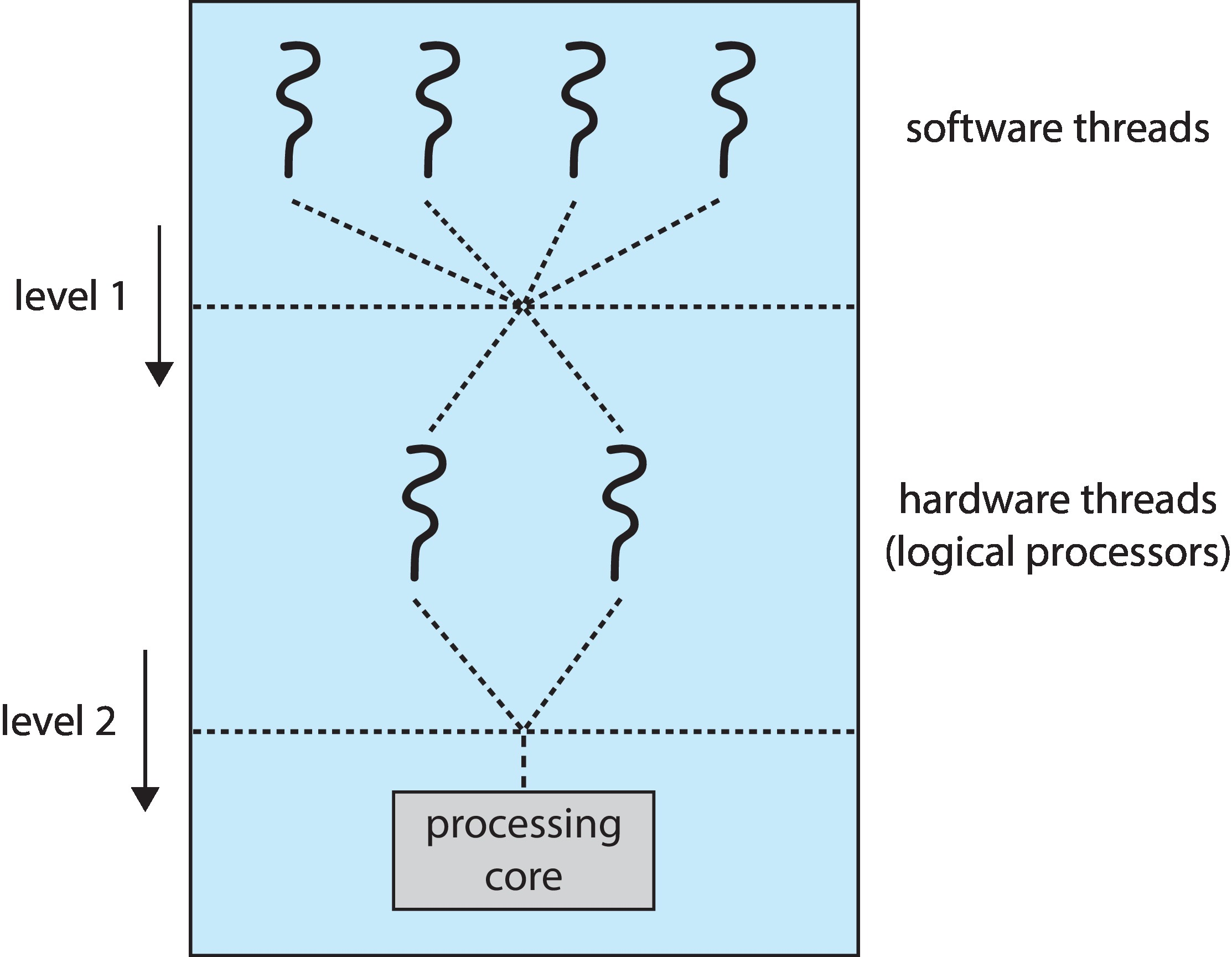

• Two levels of scheduling:
• The operating system deciding which software thread to run on a logical CPU
• How each core decides which hardware thread to run on the physical core.

Multiple-Processor Scheduling

Load Balancing

• Load balancing attempts to keep workload evenly distributed

• Push migration – periodic task checks load on each processor, and if found pushes task from overloaded CPU to other CPUs.

core 上工作太多，要推给其他的 core。

• Pull migration – idle processors pulls waiting task from busy processor.

core 上工作太少，就从其他的 core 上拉一些任务过来。

Processor Affinity 相关性

有的进程我们想要在一个 core 上跑。

• Soft affinity – the operating system attempts to keep a thread running on the same processor, but no guarantees.
• Hard affinity – allows a process to specify a set of processors it may run on.

Linux Scheduling

• Nice command
• 数越小，优先级越高
• ps -e -o uid,pid,ppid,pri,ni,cmd

Round-Robin + priority.
第一个红框 \(O(N)\) 找 counter 最大的进程，如果 counter 不为 0 就执行，否则说明所有的进程都已经跑完自己的时间片了，重新赋值时间片，按照优先级赋值。（当时数越大，说明优先级越高，后来相反了）

• 0.11

• 1.2 使用circular queue实现
• 2.2 Scheduling classes, Priorities within classes

每次找进程都要 \(O(N)\)，后来改为了 \(O(1)\) 的算法（Linux 2.6）

• active task: its time slice hasn’t been fully consumed
• expired task: has used all of its time slice

The kernel keeps two arrays of round-robin queues

• One for active tasks: one Round Robin queue per priority level
• One for expired tasks: one Round Robin queue per priority level

每个优先级都对应一个数组，每个数组里有一个 Round Robin 队列。

struct prio_array {
    int nr_active; // total num of tasks
    unsigned long bitmap[5]; // priority bitmap
    struct list_head queue[MAX_PRIO]; // the queues
}

The bitmap contains one bit for each priority level.
bitmap 存哪个优先级里还有元素，最开始所有位都是 0，如果有优先级里有进程，就把对应的位设为 1。找优先级最高的就是从左往右遍历，找到第一个 1 的位。x86 上正好有一个指令 bsfl（bit scan forward - from right to left）可以直接找到对应的位，然后再从对应的 task_list 取出一个进程。

prio_array.head_queue[bsfl(bitmap)].task_struct

一个任务执行完它的时间片后，就从 active array 移到 expired array。当 active array 为空时，就把 expired array 和 active array 交换。

问题在于：优先级数量受限制；而且 policy 和 mechanism 紧密绑定，难以维护，所以后来没有继续使用。

CFS: Completely Fair Scheduler

• Developed by the developer of \(O(1)\), with ideas from others
• Main idea: keep track of how fairly the CPU has been allocated to tasks, and “fix” the unfairness
• For each task, the kernel keeps track of its virtual time
• The sum of the time intervals during which the task was given the CPU since the task started
• Could be much smaller than the time since the task started
• Goal of the scheduler: give the CPU to the task with the smallest virtual time. i.e., to the task that’s the least "happy"
